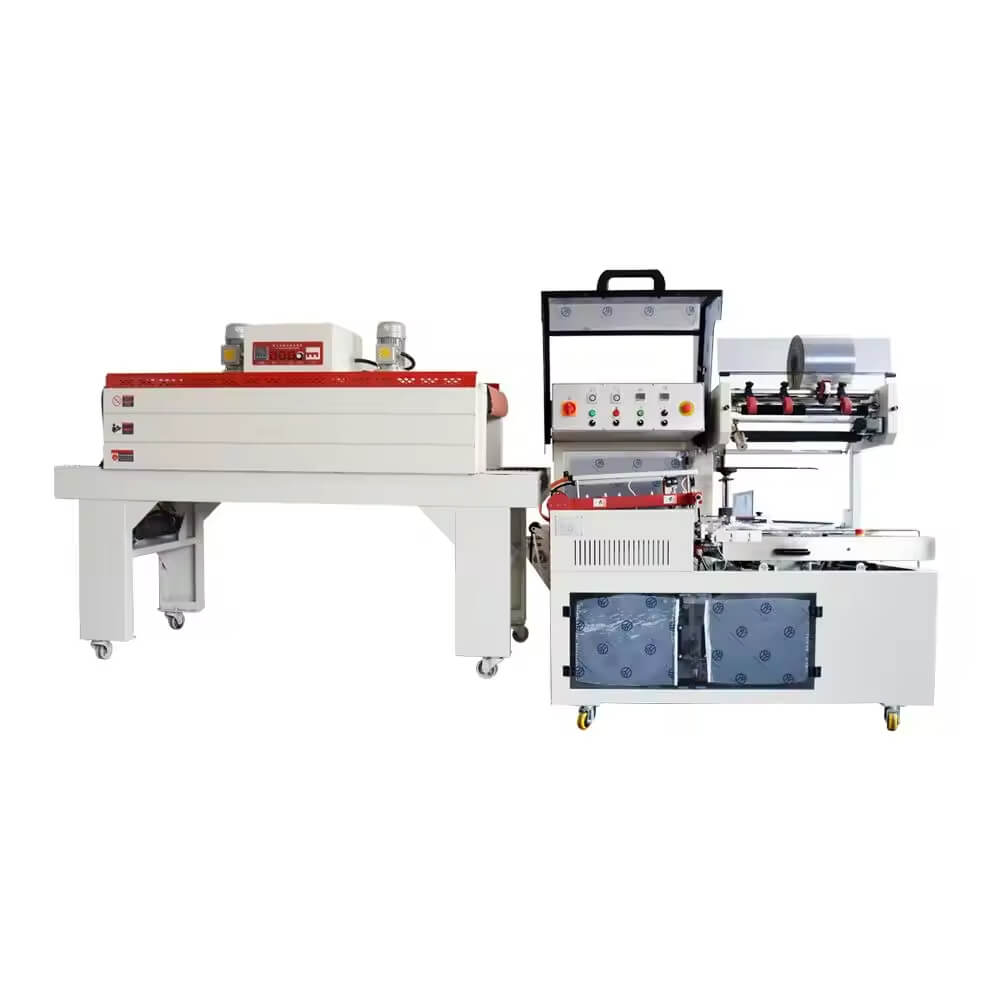

Shrink wrapping machine
Model No.: DZ-450 / DZ-550 / DZ-650/
DZ-750/DZ-850
Speed up to 15-30 bags per minute
Max Speed 30 bpm
Features

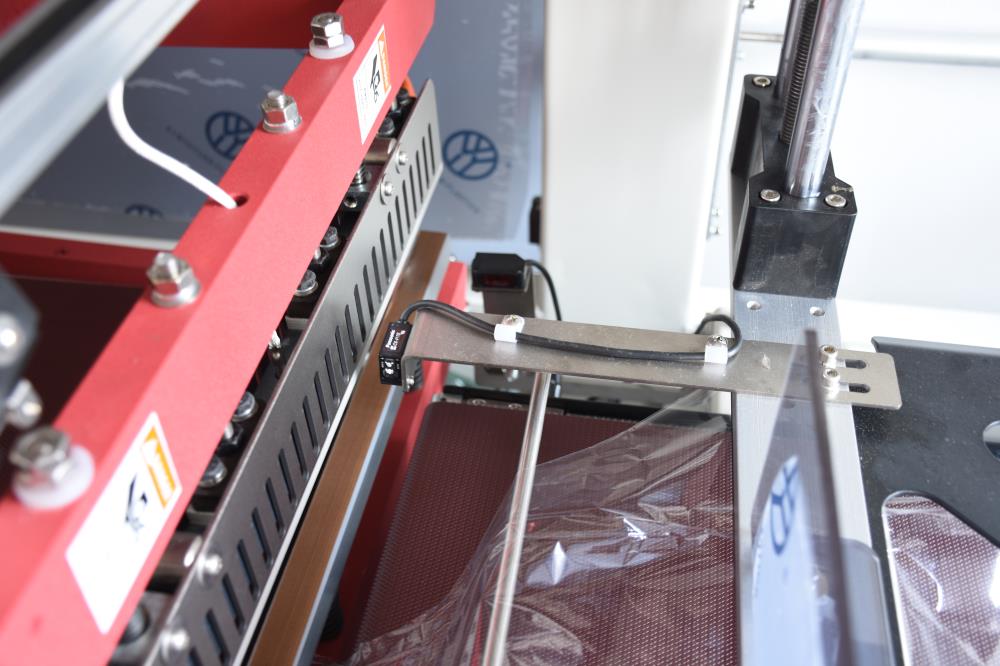

- Teflon-coated high-temp sealing knife
- Digital PID temperature control

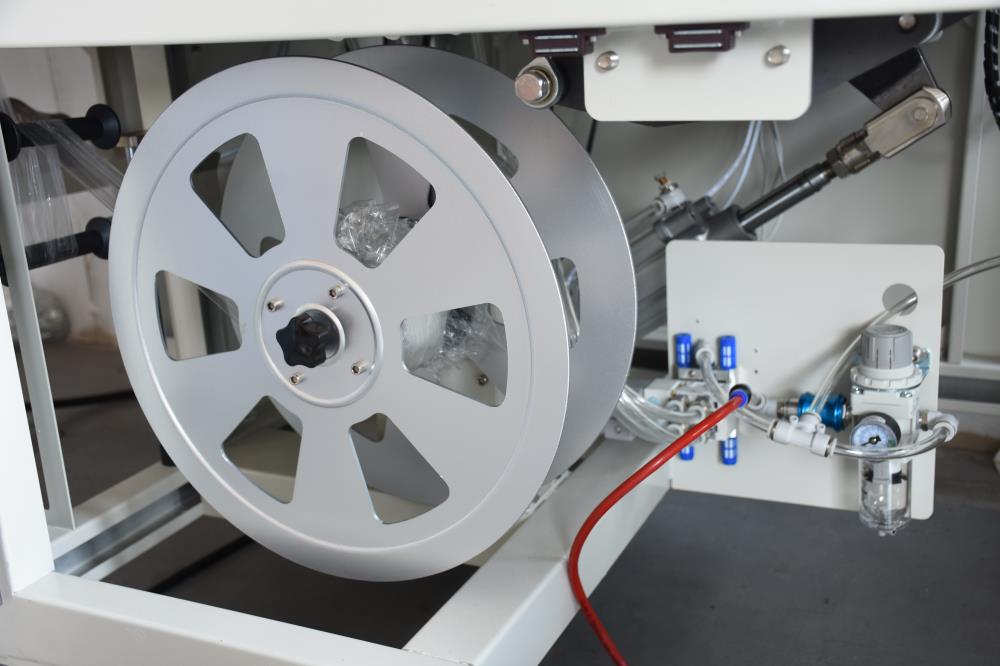

- Auto film feeding with EYE/Timer
- Anti-miscut safety protection
- Unmanned production line integration
- Imported electrical components
- Auto/Manual mode switching
- POF film compatibility
- Cost-saving vs carton packaging
length < 390 Width < 450 heigth < 14
Option
Customized logo
Customized packagin
Graphic customization
Specification
| Model | 450 packing +4522 heat shrink tune! | 550+5030 | 650+6040 | 750+7050 | 850+8060 |
|---|---|---|---|---|---|
| Packing Speed | 15-30 packages/min | 15-30 packages/min | 15-30 packages/min | 15-30 packages/min | 15-30 packages/min |
| Packing Size | Length < 390mm Width < 450mm Height < 140mm Tube: 450×220mm | Width + Height ≤ 550mm Height ≤ 25mm | Width + Height ≤ 650mm Height ≤ 25mm | Width + Height ≤ 750mm Height ≤ 25mm | Width + Height ≤ 850mm Height ≤ 38mm |
| Sealing Knife Size / Shrink Oven Size | 450mm / 1500×450×220mm | Sealing Knife 550 | Sealing Knife 650 | Sealing Knife 750 | Sealing Knife 850 |
| Machine Size / Heat Shrink Tune Size | 1700×900×1600mm 1910×700×1500mm | 1900×900×1600mm 1910×700×1500mm | 1900×900×1600mm 2500×900×1560mm | L2000×W1000×H1500mm 2500×900×1560mm | L2100×W1000×H1500mm 2500×900×1560mm |
| Weight | 400KG/320KG | 400KG/350KG | 400KG/450KG | 400KG/500KG | 400KG/550KG |
| Power Supply | 220/380V/50Hz (tube only for 380V) |
220/380V/50Hz (tube only for 380V) |
220/380V/50Hz (tube only for 380V) |
220/380V/50Hz (tube only for 380V) |
220/380V/50Hz (tube only for 380V) |
| Total Power | 1.5kW/18kW | 1.5kW/18kW | 1.5kW/20kW | 1.5kW/24kW | 1.5kW/24kW |
| Supply Film | POF | POF | POF | POF | POF |
Industries & Applications

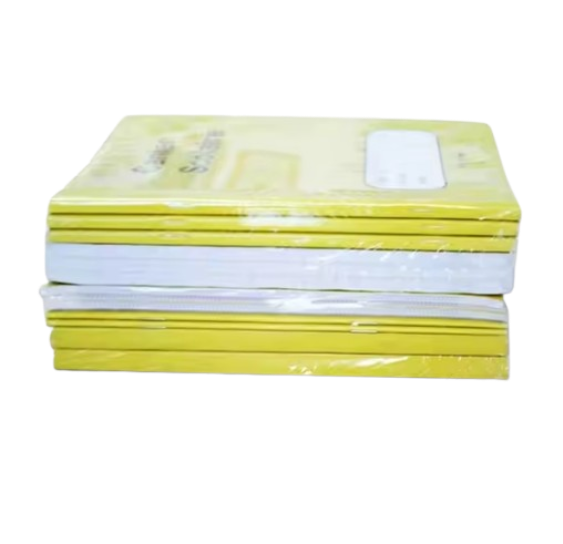

Book
Box

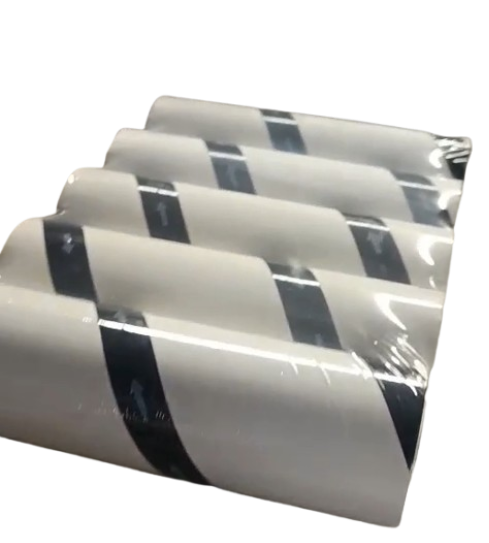

Cardboard Tube
Clean Sets
Cosmetic Box

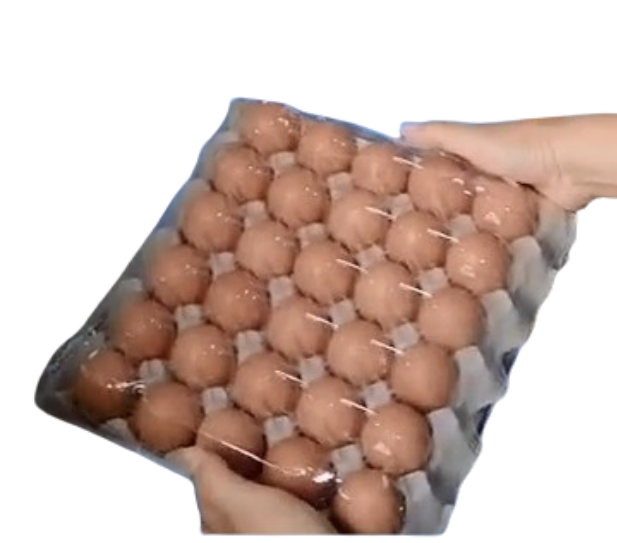

Egg
Filter Cartridge
Garbage Bag

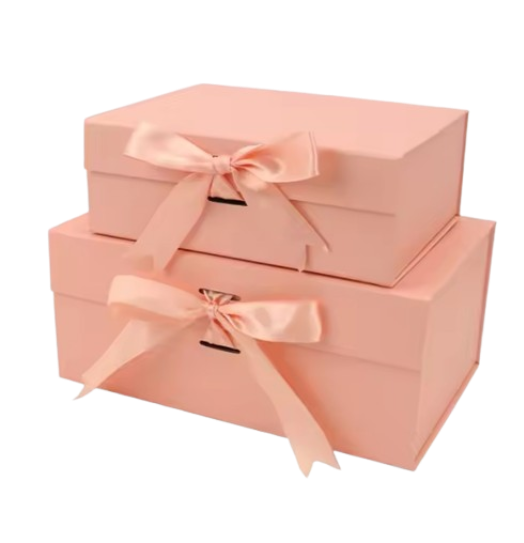

Gift Box
Noodles

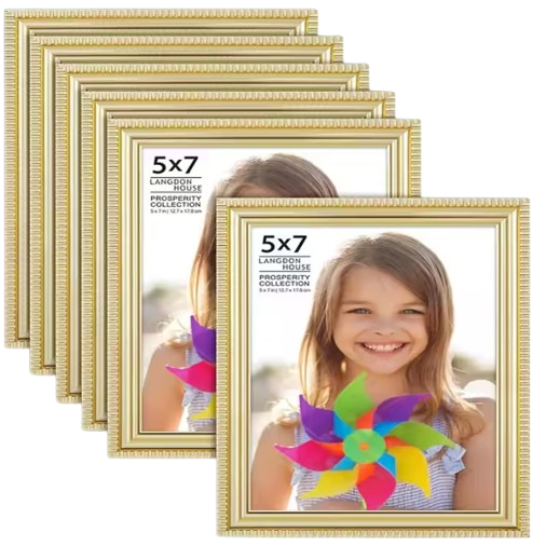

Picture Frames
Plank
Plastic Bottle
Tableware Set
Snack Box
Washcloth
