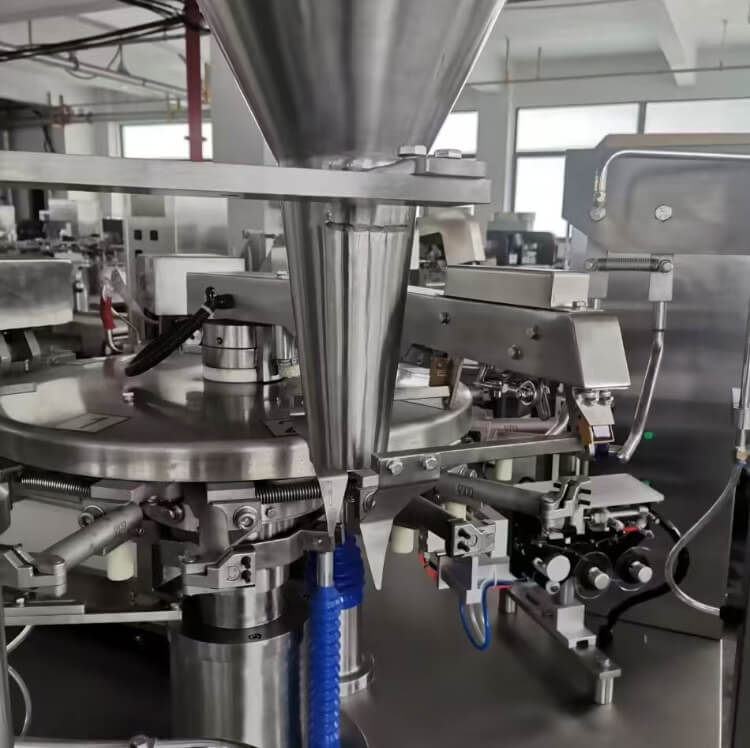

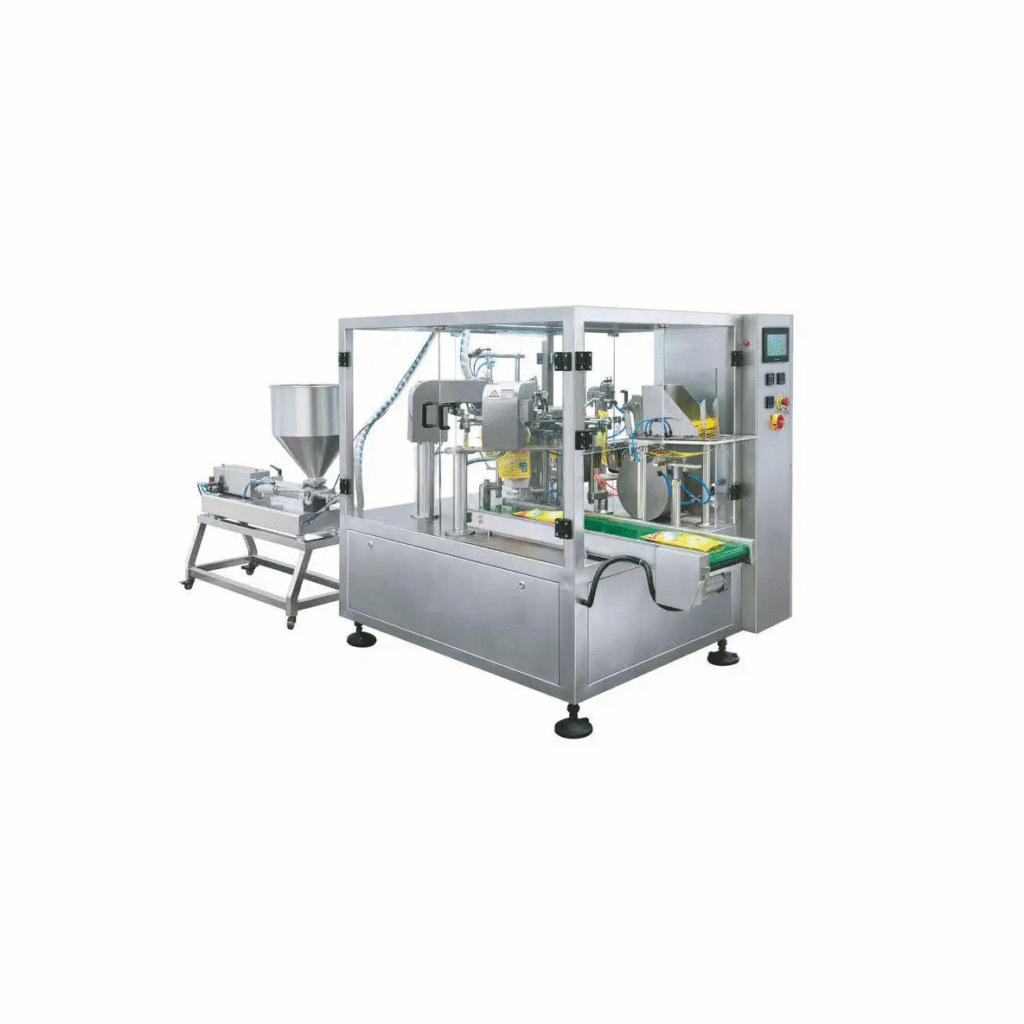

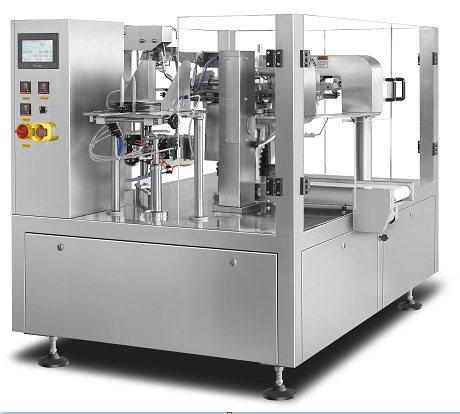

Rotary Premade Pouch Packing Machine

Speed up to 60 bags per minute

60 bpm

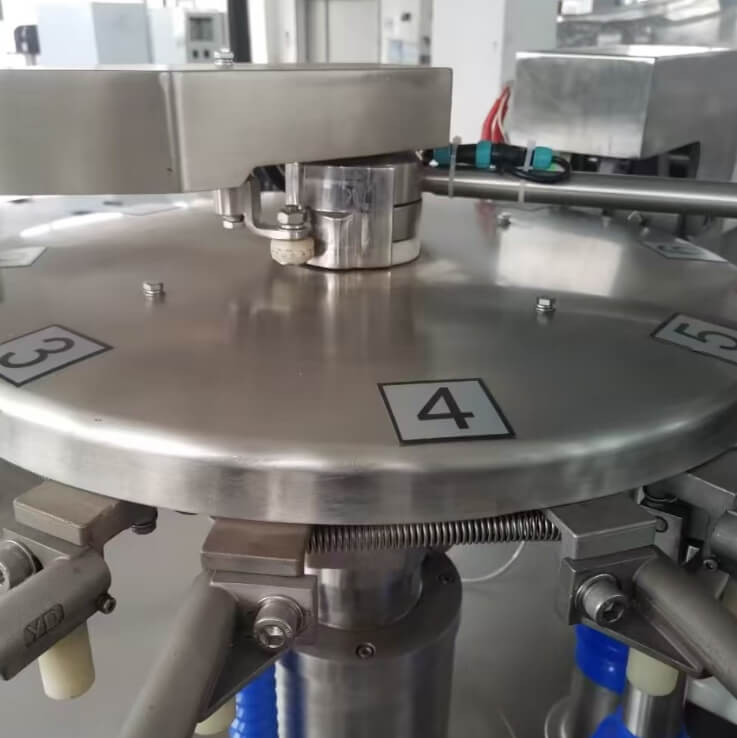

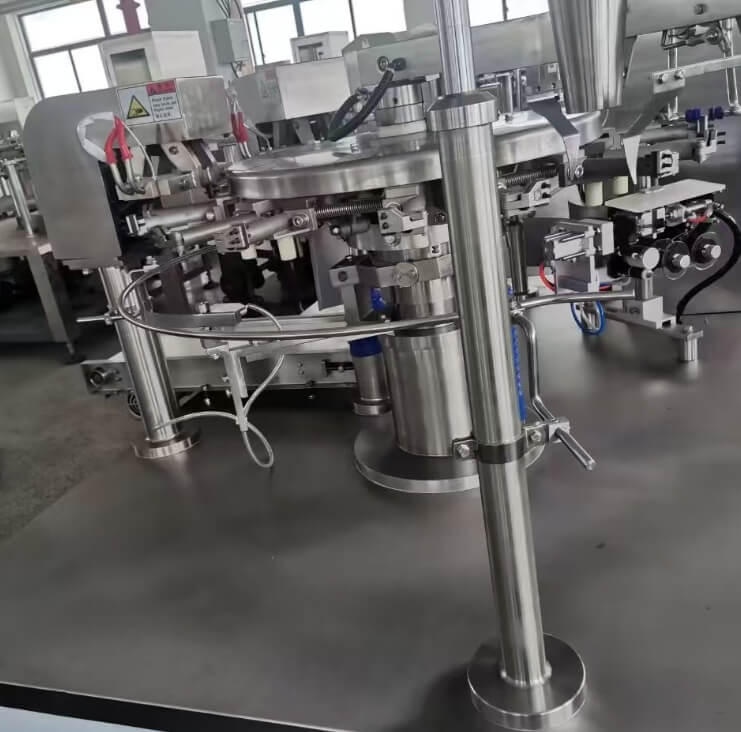

Automatic 8 stations for pre-made bags packaging
Automatic Pick & Place bag infeed system
Siemens PLC control with touch screen operation
Multi-Language HMI

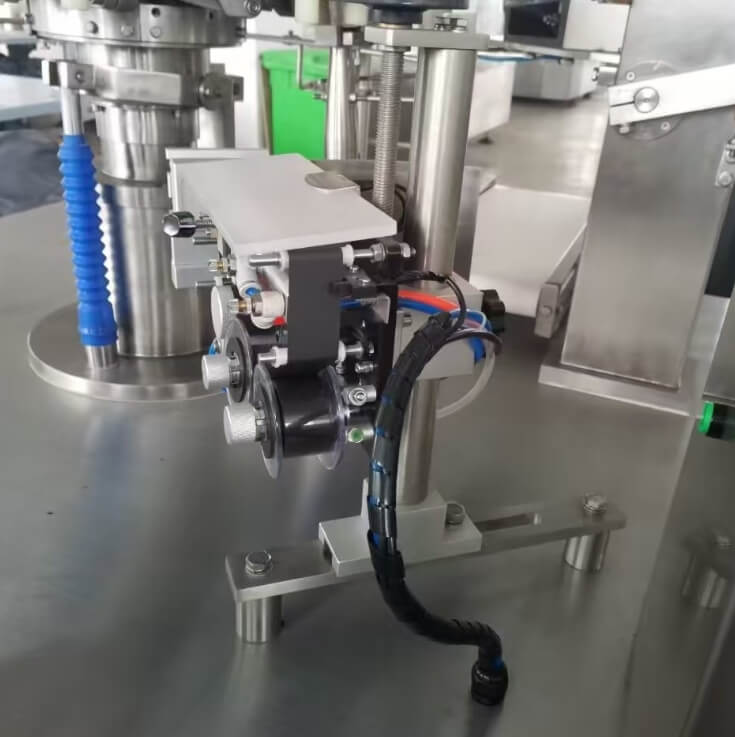

Date Coding
304 stainless steel frame
Storage for 100 product recipes
Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
Pouch presence detection – no filling, no sealing
Bag deflation with wire guide or push bars
The two-step sealing process guarantees clean sealing
Cooling station for liquid products

Download Catalog

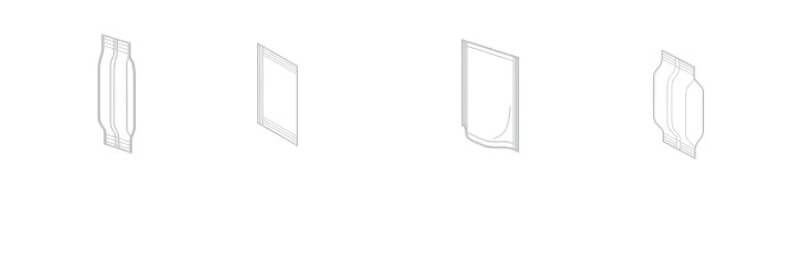

Min

100 x 90 mm (1.6 x 1.2″)

Max

500 x 320mm (19.7 x 7.9″)

Various filling systems for powder, granule, liquid, snacks, herbal, or other customized products
Zipper opening & Sealing device
Date coding
Metal detectors
Checkweigher
Bag deflators
Dust suction nozzles and dust collector
Material infeed conveyor
Collating discharge conveyor
Ethernet connectivity
Automatic deoxidizer & spoon feeding station

video

DZ Series Packaging Machine Specifications

Model	DZ-200	DZ-250	DZ-300
Number of Stations	8	8	8
Packing Speed	25-60 bags/minute	25-50 bags/minute	20-35 bags/minute
Packaging Size	Length: 100-350 mm (1.6-5.5") Width: 90-200 mm (1.2-3.2")	Length: 120-400 mm (4.7-17.7") Width: 120-250 mm (2.0-6.3")	Length: 150-500 mm (4.7-19.7") Width: 150-320 mm (2.0-7.9")
Air Consumption	0.4m³/min	0.5m³/min	0.6 m³/min
Power	2.3KW	3.5KW	4.5KW
Voltage	380V 50/60Hz	380V 50/60Hz	380V 50/60Hz
Machine Weight	1300KG (1100 lbs)	1400KG (2116 lbs)	1500KG (2257 lbs)
